FMC-6 / FMC-6M DIRECTV SWM CHASSIS


Includes 3 Power Supplies (Required)

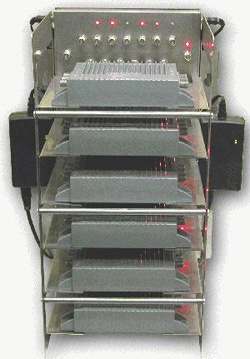

FMC-6 shown with two (of 3) power
supplies and 6 SWM8 modules installed.
(SWM8s, power supplies sold separately.)
FMC-6 DISTRIBUTION CHASSIS

Features:

  • Holds 1-6 SWM8 modules (up to 32 tuners).
  • Can be cascaded for easy expansion to more than 32 tuners.
  • Easy installation. LED indicators confirm presence of signals and DC line power.
  • Fully configured, the FMC-6 requires three 24V VCD power supplies.
  • Minimal signal loss.
SPECIFICATIONS, FEATURES AND FUNCTIONS: FMC-6M
Description
6 SWM Module Chassis
Satellite

250- 2150 MHz

Terrestrial
54 - 806 MHz (assumes no MRV)
Return Path 5 - 40 MHz
Number of Input Ports 6 Satellite / 1 Terrestrial
Number of Cacadable Output Ports 6 Satellite
Number of SWM Module Output Ports 36 Satellite / 6 Terrestrial / 6 DC Powering
Input to Cascadable Output Insertion Loss 0 dB
Satellite -5 max dB
Terrestrial +10 dB
Return Path -10 dB
Flatness @ 36 MHz +/- 0.5 dB
Isolation between satellite Trunk Lines >40 dB
Trunk Lines >10 dB
SWM Module Output Ports >8 dB
Green LED -45 to -20 dBm
Red Blinking LED < -45dBm
Red LED > -20 dBm
DC Power Jack 3 x DC Power Jack 2.1mm
DC on Off-Air Input 24 V
DC Consumption of Off-Air input 200 max mA
Current on Satellite Trunk Linkes

1000 max mA

SWM DC Powering Connectors 24 V
SWM DC Powering Indicators Yellow LED
Environmental Requirements Indoor use
Operating Temperature Range -34C to +60C / -31 to +140F
